破碎系統設備 板式給料機
結構特點
重型板式給料機用于料倉下，可將大塊礦石卸出并均勻地向破碎機喂料，廣泛 應用于水泥、建材、冶金、礦山等行業。
●結構強度大，采用減震緩沖專利技術可承受料倉的壓力及大塊礦石卸入料倉的沖擊載荷。
High structural strength and patented vibration suppression technology. Able to sustain the pressure from
the material bin and the impact load from big boulders being discharged into the bin;
●槽板堅固結實，采用履帶牽引鏈，耐磨損，免潤滑。
The durable grooved plates are driven by pulling chains, which are wear-resistant and lubricant-free;
●槽板下的滑道采用專有技術自潤滑材料制造，使用簡單，工作可靠。
The sliding way under the grooved plates is made from self-lubricating material, which is easy to use and
operates reliably;
●傳動部分為軸端懸掛的行星齒輪減速器，由變頻調速電機驅動，給料能力可大范圍調節，滿足破碎機工作的
需要。
The planetary gearbox attached to the driving is connected to a shaft and driven by variable frequency
motor, enabling the feeding capacity to be adjusted within a wide range, thus matching the requirements
of the crusher;
●根據需要確定給料機的長度，最大安裝傾角可達 25 度。
Feeder length is determined by actual requirements, with maximum inclination up to 25 degrees.

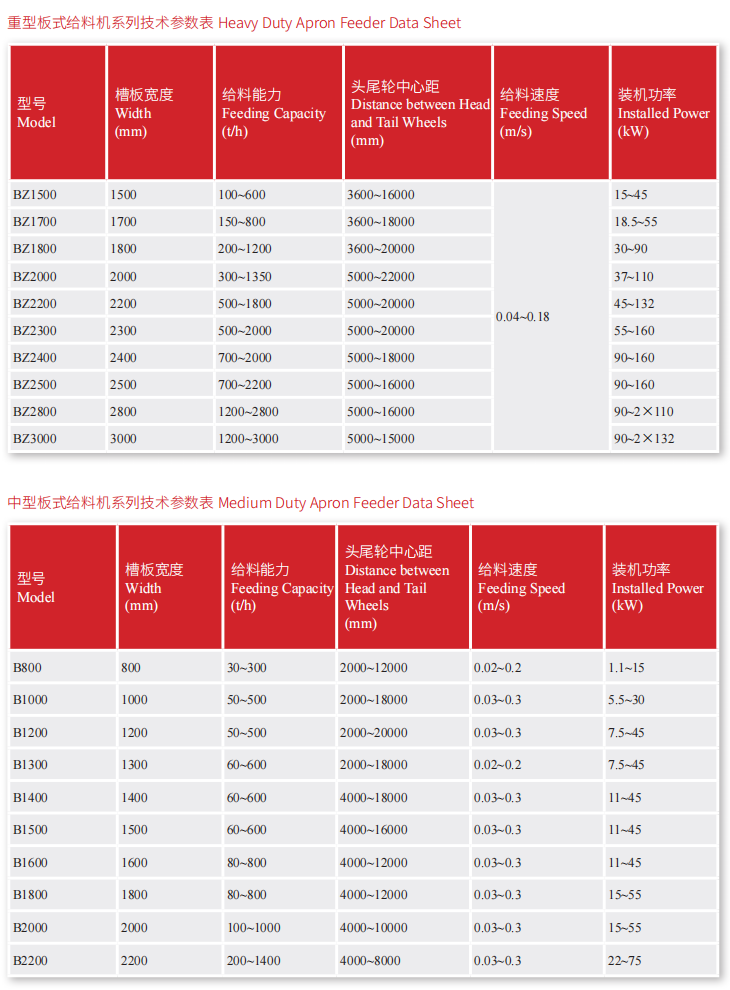

技術參數
